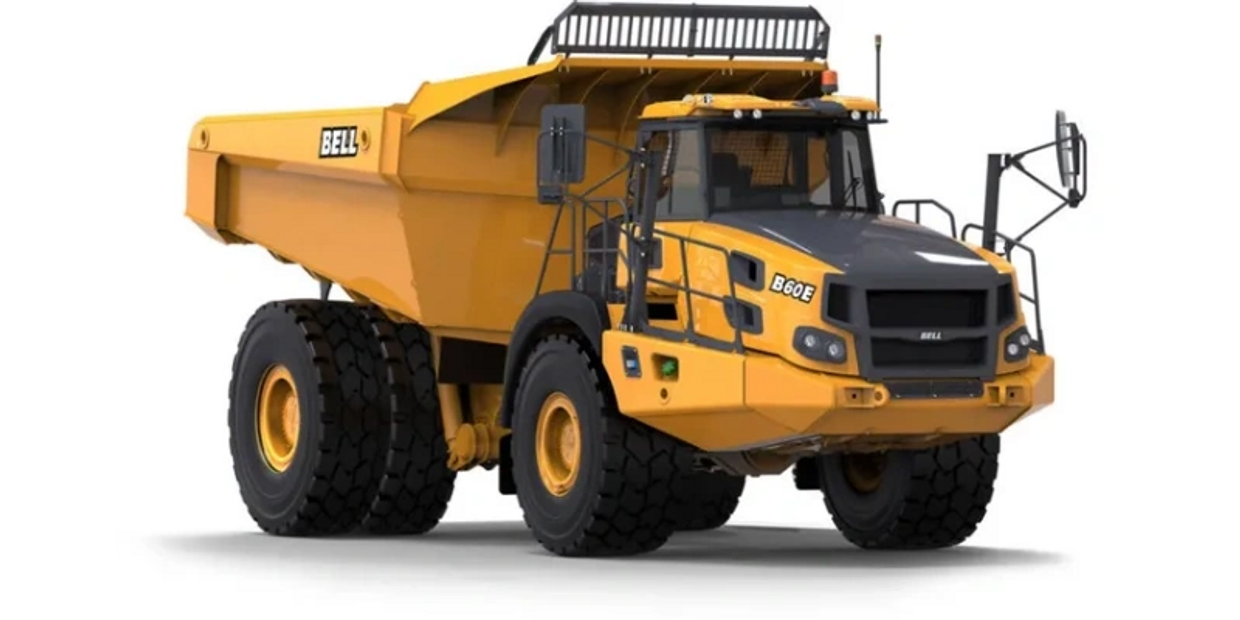

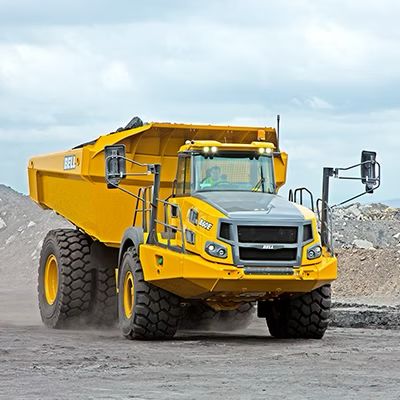

Bell B60E, The All Wheel Drive ADT
The Bell B60E offers you more tonnage than ever before, and at a related lower cost per ton. It keeps all of the traditional Bell safety and productivity features while still offering off-road capability that non-ADT solutions cannot match.
Available for Purchase Only
The B60E articulated truck developed as a result of the Bell tradition of listening to you, our customers. You told us you were looking for a machine that would perform better than conventional haulage solutions in slippery and undulating conditions, but didn’t need the ‘go anywhere’ ability of a 3 axle 6×6 ADT. In response Bell has filled this conspicuous gap in the market with the B60E crossover solution.
By configuring the driveline to direct drive to all wheels, the Bell B60E can go places where conventional trucks can’t.
The B60E has been enthusiastically received, giving productivity during adverse weather conditions when other machines are unable to operate, and also tolerating less site maintenance, which has large cost and hassle implications for many job sites.
Mercedes Benz OM473LA
Inline 6, turbocharged and intercooled.
Gross Power 430 kW (577 hp) @ 1 700 rpm
Net Power 405 kW (543 hp) @ 1 700 rpm
Gross Torque 2 750 Nm (2 028 lbft) @ 1 300 rpm
Transmission
Allison 4800 ORS
Fully automatic planetary transmission.
7 Forward, 1 Reverse
Wheels
Radial Earthmover Tire Front: 875/65 R29
Rear: Twin 24.00 R35
Axles
Front - Bell Rear - Kessler Model Front: 30T Rear: 71T Differential Front: High input controlled traction differential with spiral bevel gears Rear: Centre input open differential with spiral bevel gears
Load Capacity (yd³)
Struck Capacity 35.3
SAE 2:1 Capacity 45.8
SAE 1:1 Capacity 54.9
SAE 2:1 Capacity with Tailgate 46.6
Rated Payload
121,254 lbs
